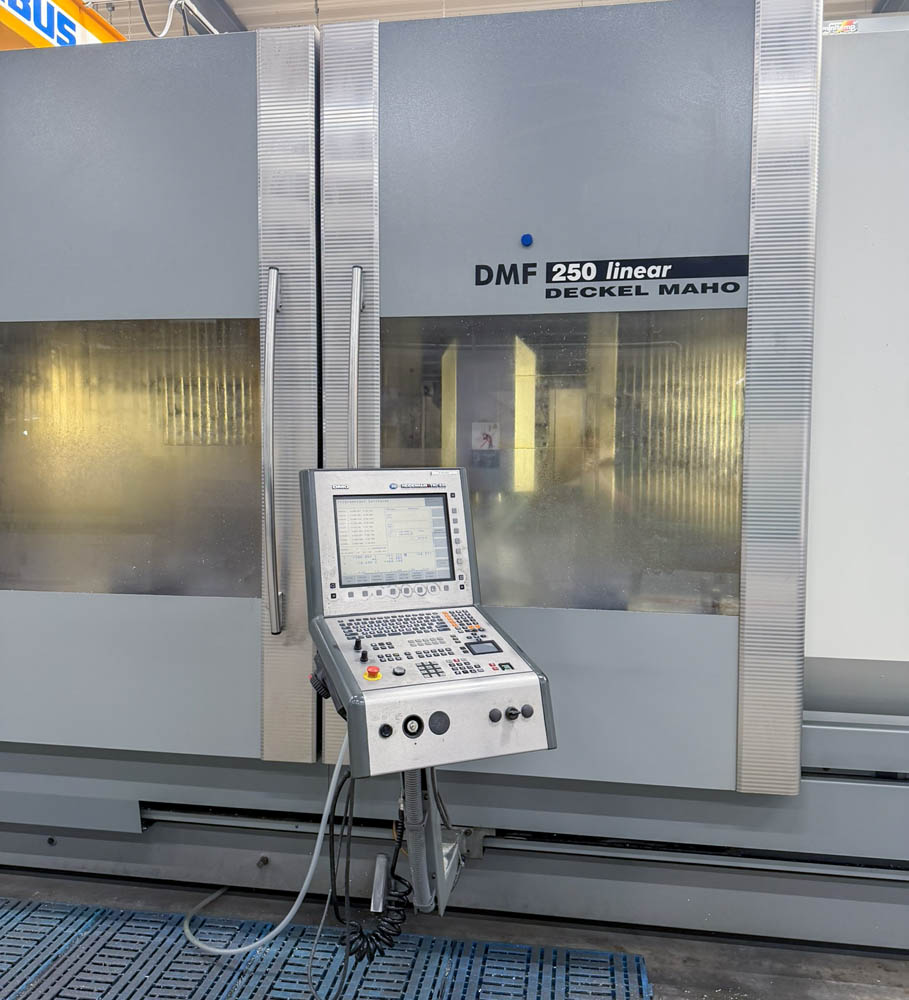

DECKEL MAHO DMF 250 linear (2006): 4-Axis Vertical Machining Center with 120-Tool Magazine

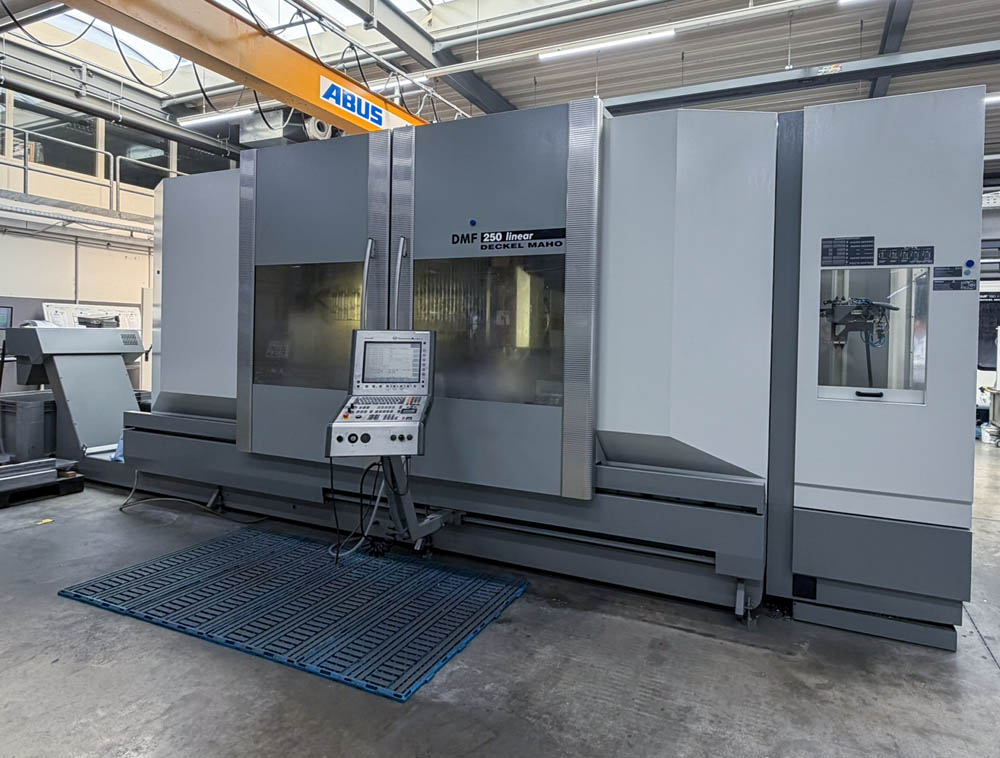

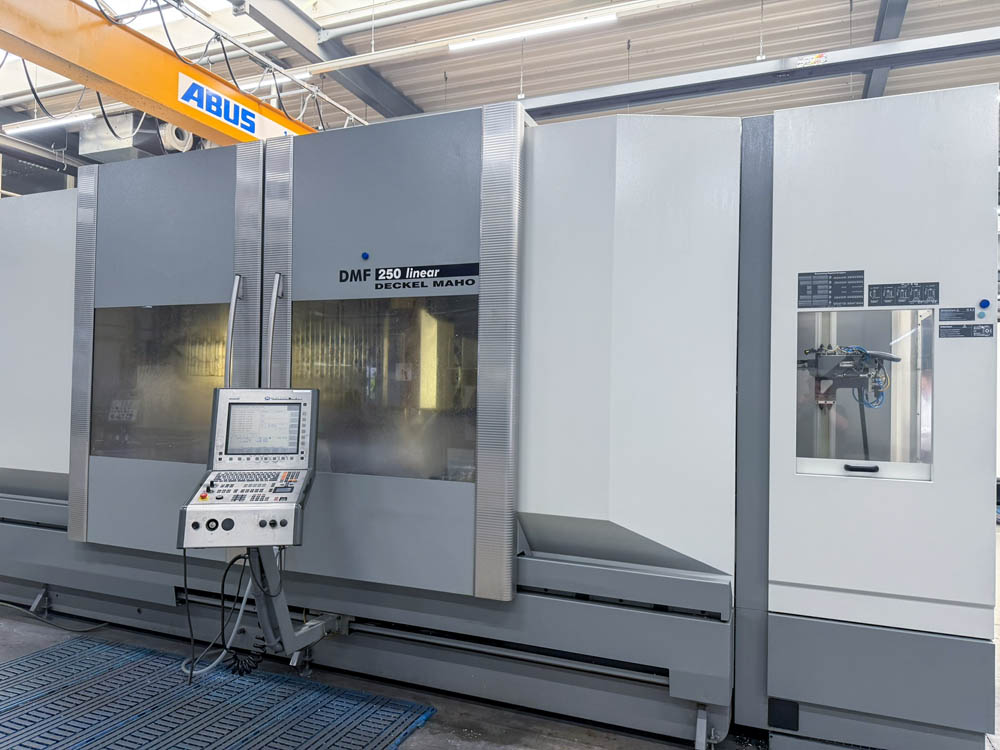

DECKEL MAHO DMF 250 linear
ID: DECKEL-MAHO-DMF-250-LINEAR-2006-MC000073German Engineering. 18,000 RPM Spindle. 120-Tool Capacity. HSK-A63 Interface.
- Germany
2006 DECKEL MAHO DMF 250 linear 4-axis vertical machining center with 2,500 x 920 x 820 mm travels. Features 18,000 RPM spindle, 120-tool magazine with HSK-A63 interface, B-axis ±105°, 3,100 x 900 mm table supporting 3,000 kg, laser tool measurement, and workpiece probe. Located in Germany.
- Large Work Envelope: 2,500 x 920 x 820 mm travels for substantial workpieces

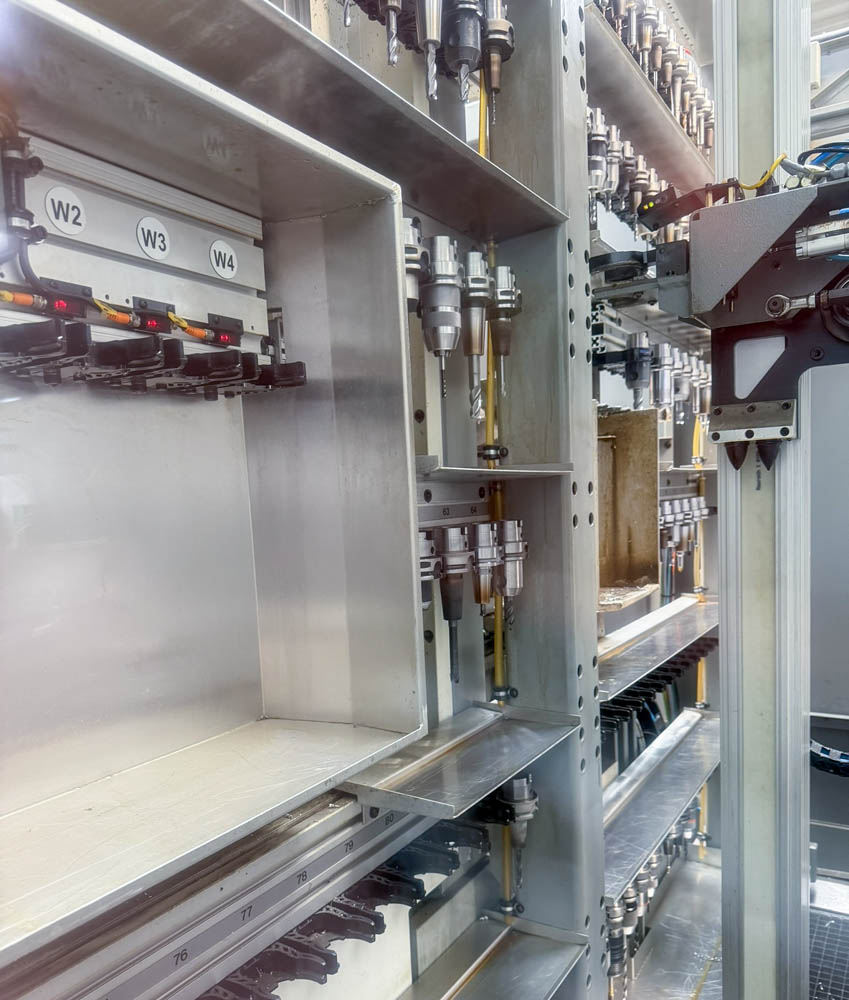

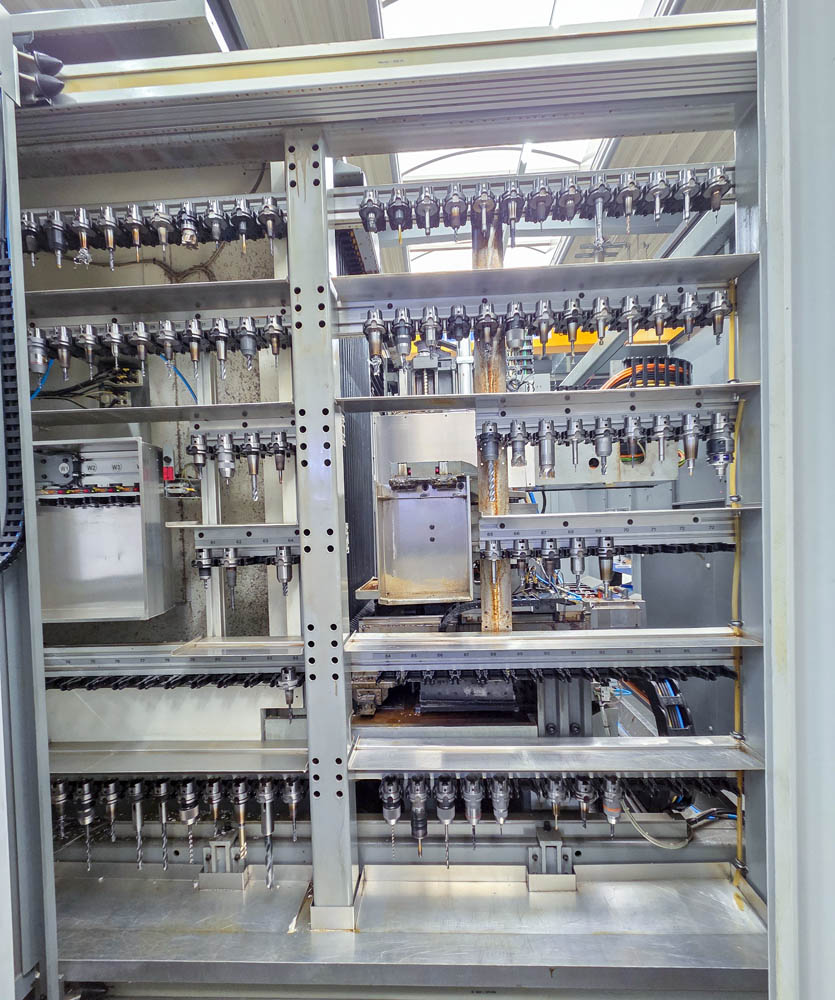

- High-Capacity Tooling: 120-position tool magazine with HSK-A63 interface
- 4-Axis Capability: B-axis ±105° for complex angular machining operations

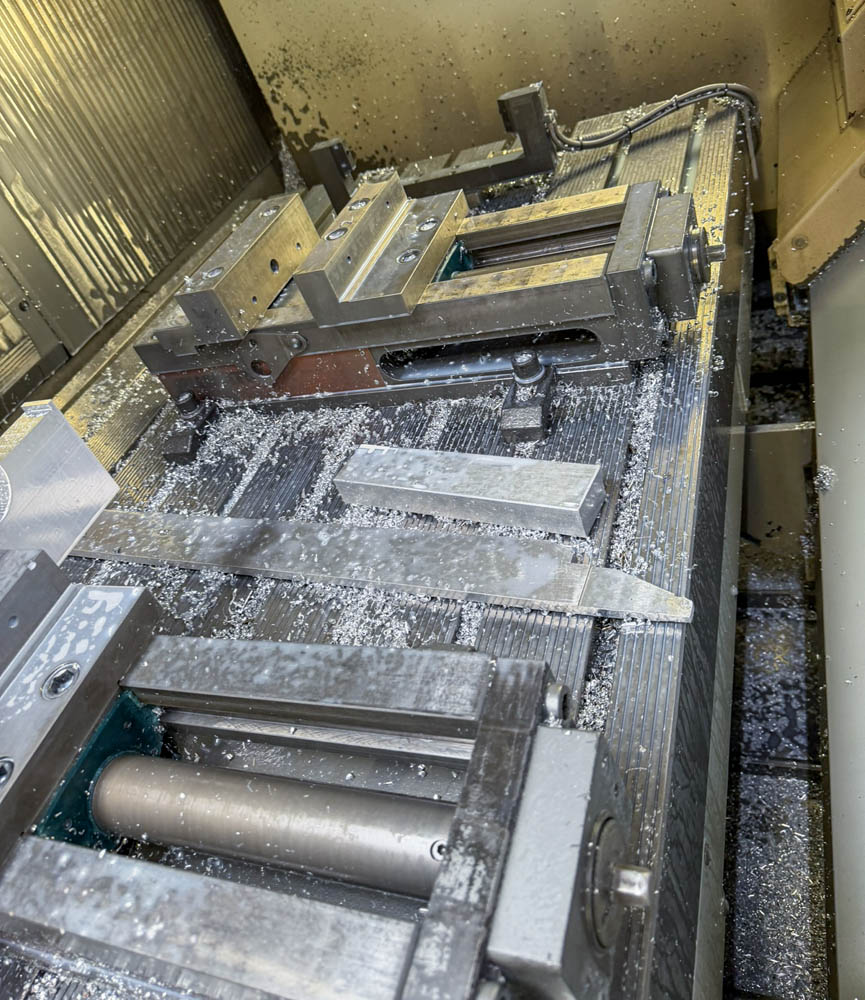

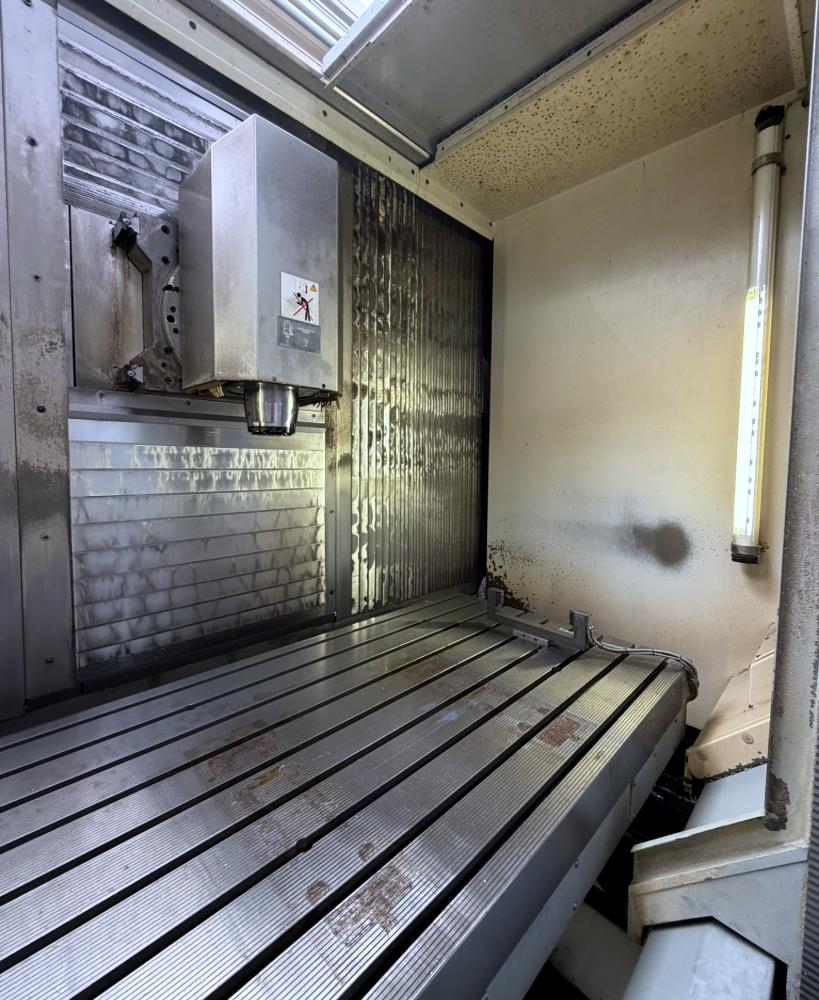

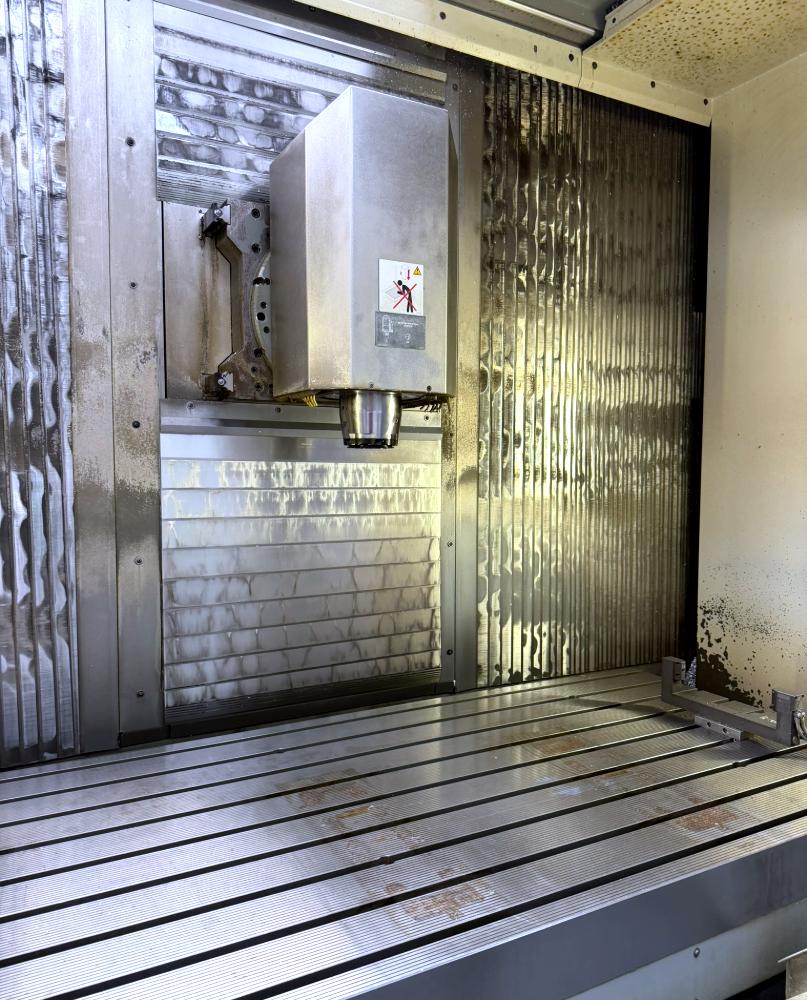

- Heavy-Duty Table: 3,100 x 900 mm table supporting up to 3,000 kg
- High-Speed Spindle: 18,000 RPM with 35 kW power for demanding applications

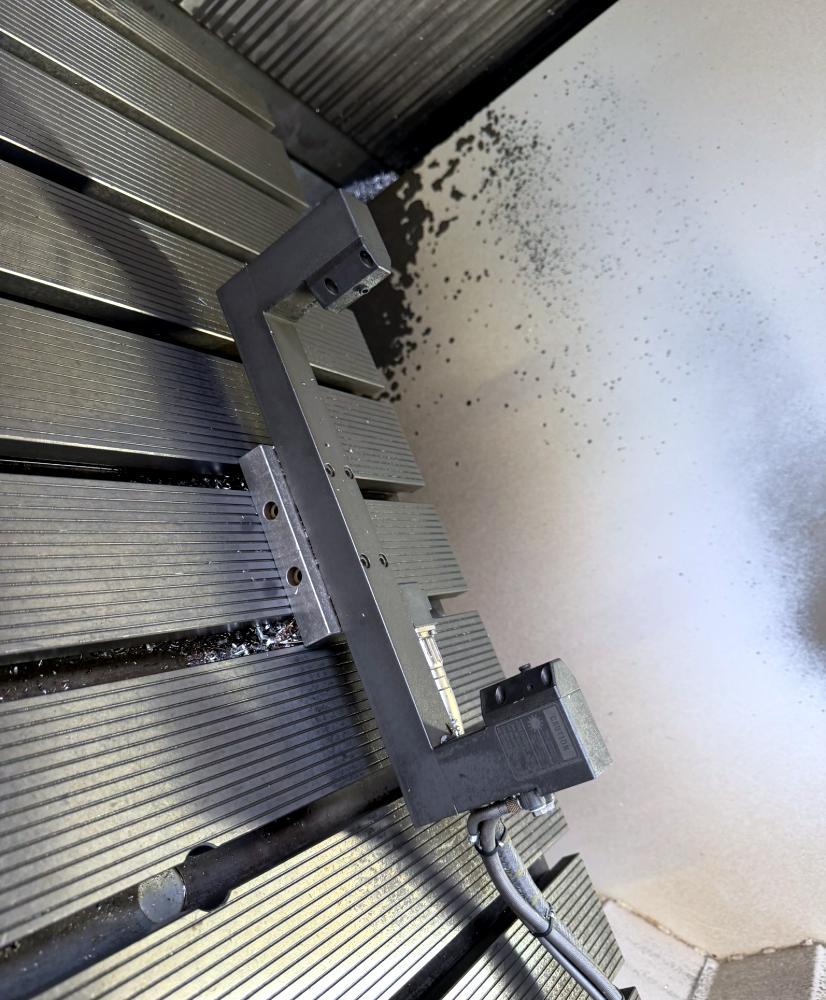

- Precision Measurement: Integrated laser tool measurement and workpiece probe
Galerie
Technische Spezifikationen
- Number of Controlled Axes
- 4
- X-Axis Travel
- 2,500 mm
- Y-Axis Travel
- 920 mm
- Z-Axis Travel
- 820 mm
- B-Axis
- ±105°
- Rapid Traverse
- X: 100 m/min | Y/Z: 60 m/min

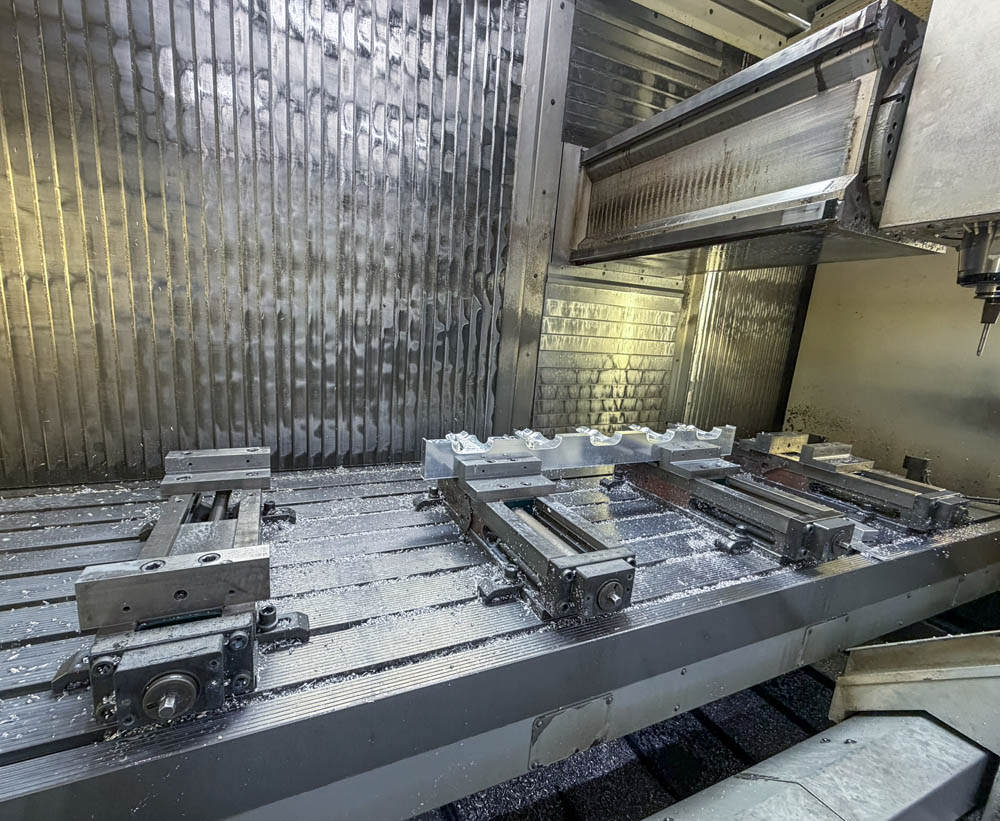

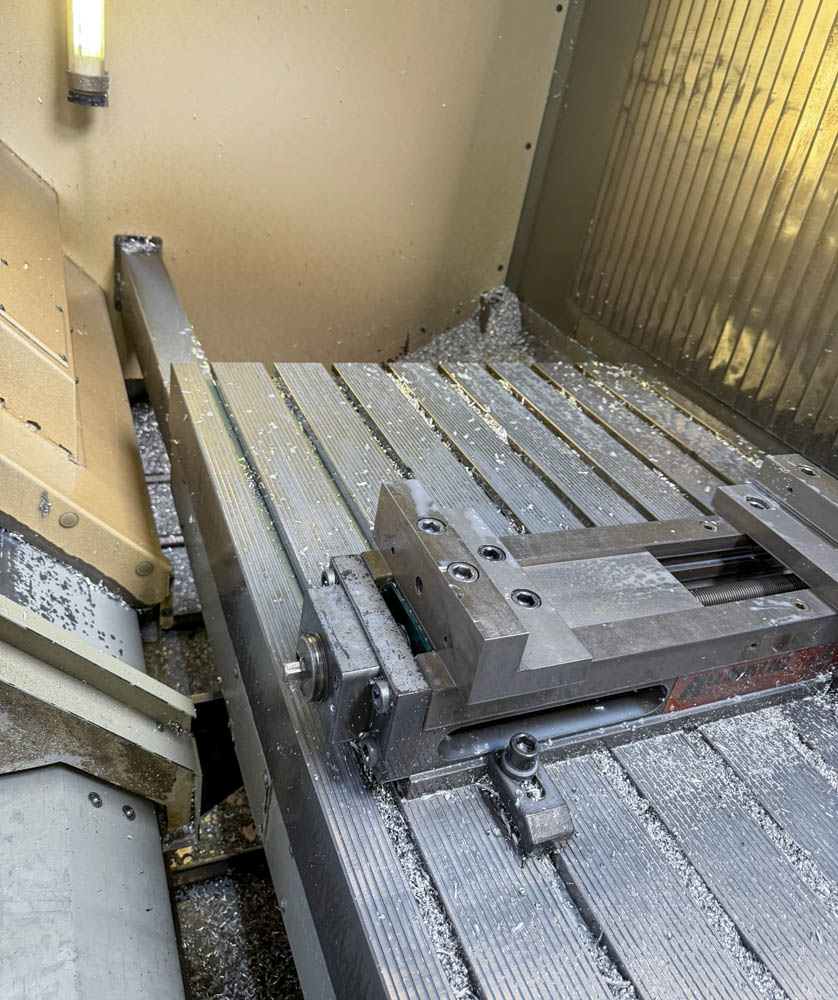

- Table Dimensions
- 3,100 x 900 mm
- Max Table Load
- 3,000 kg

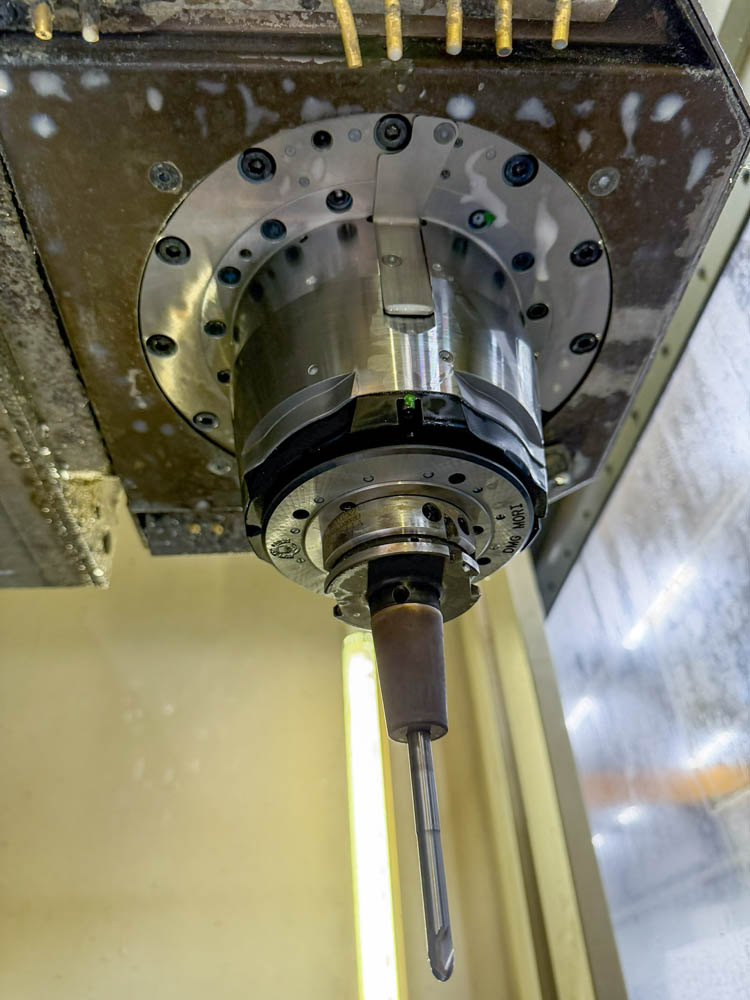

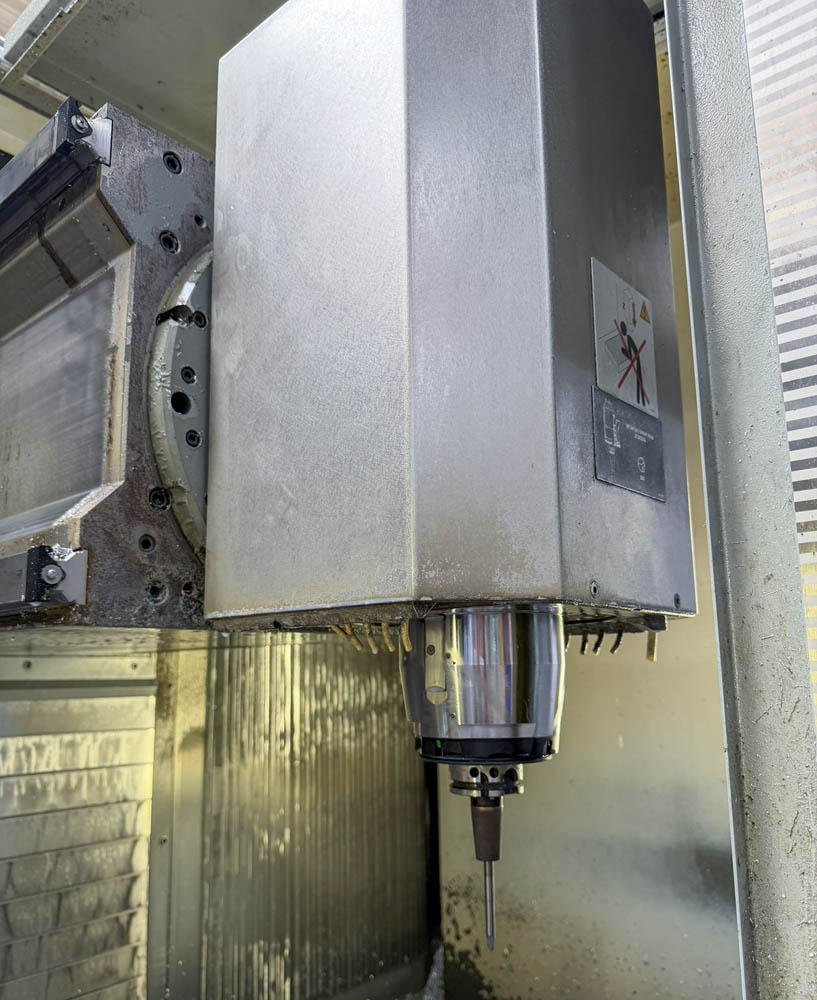

- Spindle Speed
- 20 – 18,000 RPM
- Spindle Power
- 35 kW (S1) / 25 kW (S6)
- Tool Holder
- HSK-A63
- Tool Magazine Capacity
- 120 positions
- Rated Power
- 82 kVA
- Machine Length
- 6,000 mm
- Machine Width
- 2,800 mm
- Machine Height
- 2,950 mm
- Machine Weight
- ~25,000 kg
- dimensions
- X: 2,500 mm | Y: 920 mm | Z: 820 mm | B: ±105°

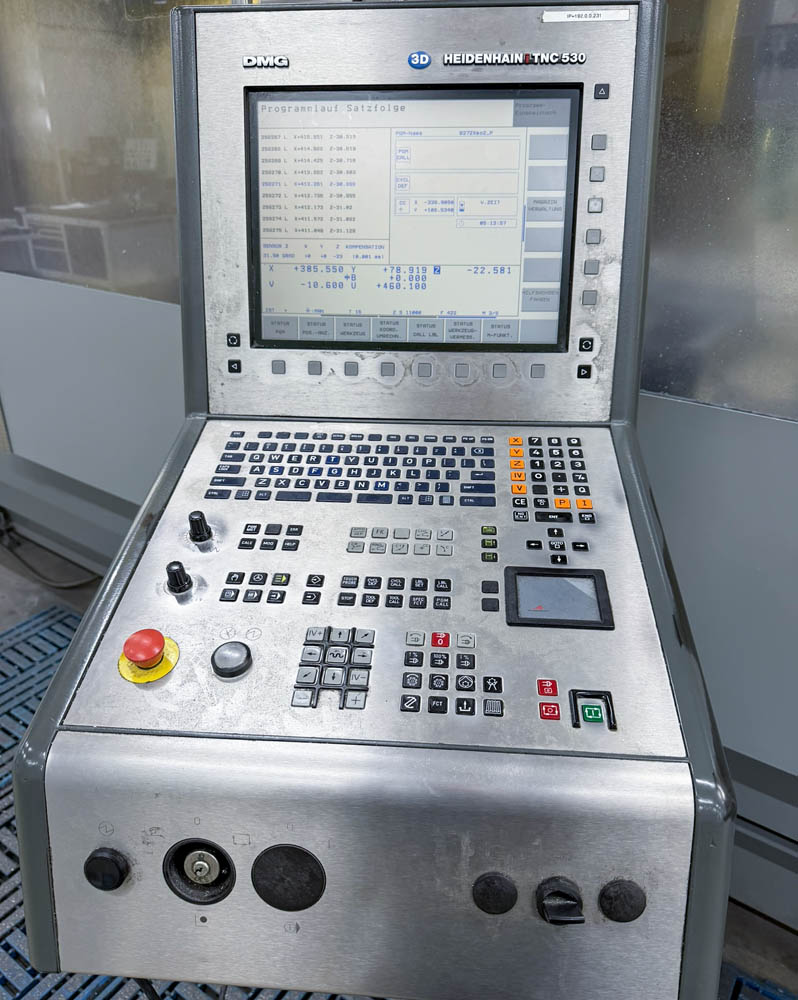

- Control
- Not specified
- Equipment
- 120-position automatic tool changer Laser tool measurement system Workpiece measuring probe Electronic handwheel (MPG) Chip conveyor Sealing air for linear measuring systems Documentation and manuals included
Ausstattung

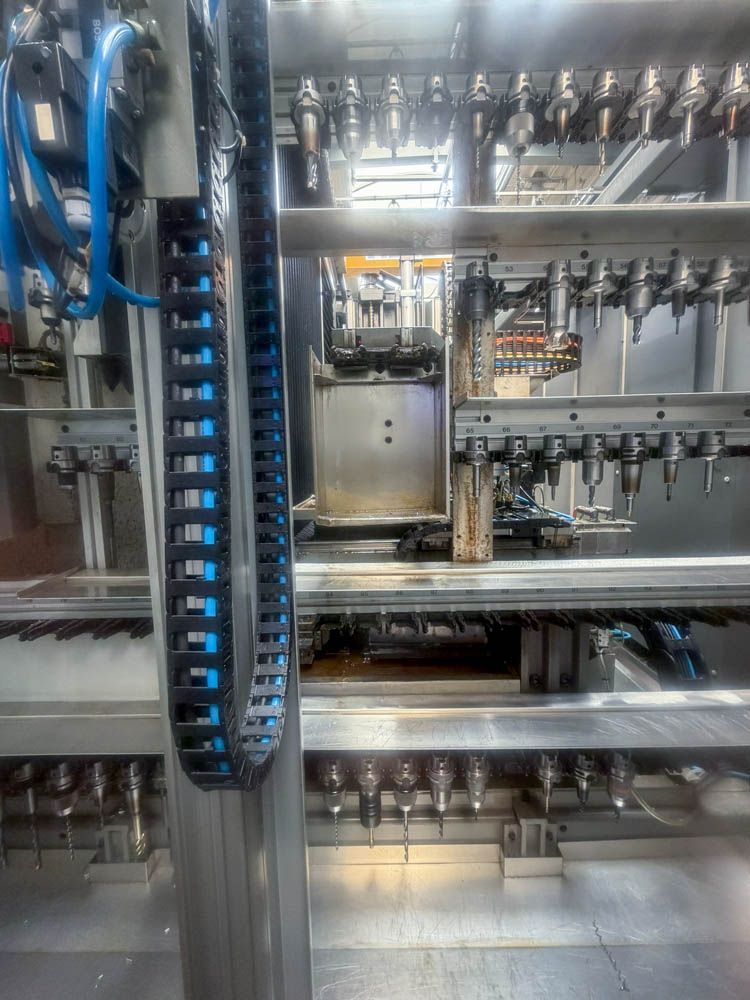

- 120-position automatic tool changer
- Laser tool measurement system
- Workpiece measuring probe

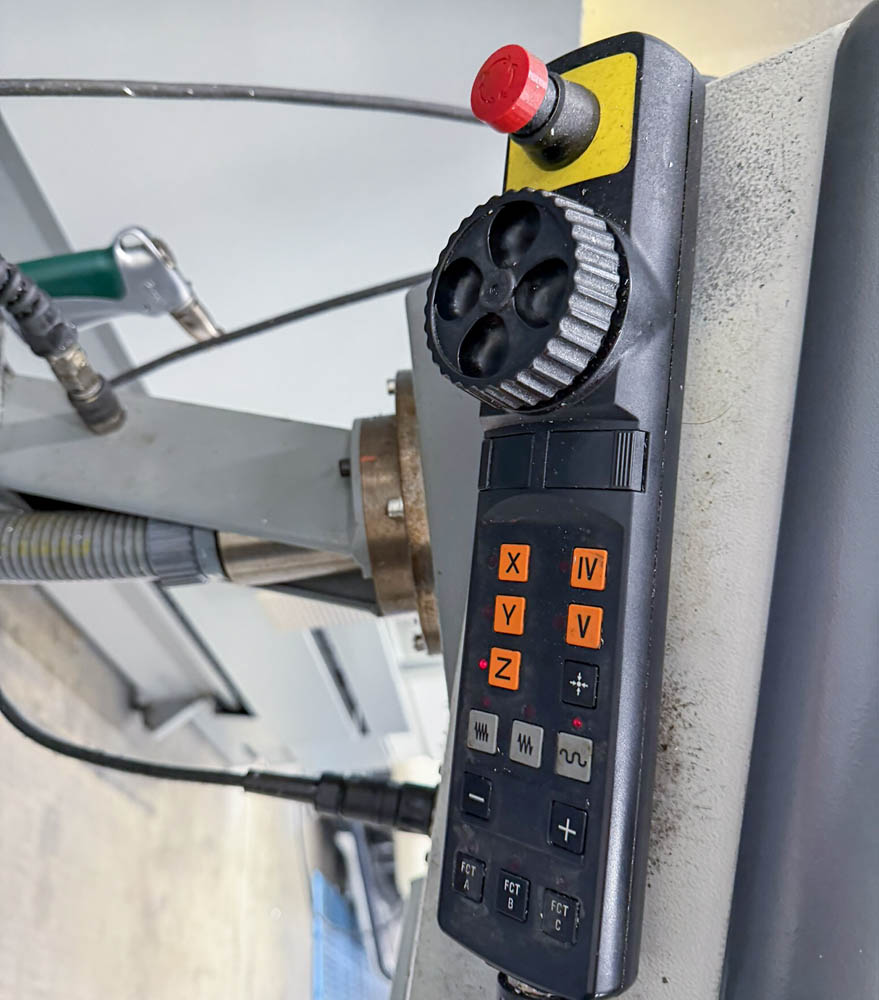

- Electronic handwheel (MPG)
- Chip conveyor
- Sealing air for linear measuring systems
- Documentation and manuals included
Zusammenfassung
Beschreibung
Operational Excellence & Equipment The DECKEL MAHO DMF 250 linear is renowned for its exceptional rigidity and capacity to handle large, heavy workpieces with precision. This 2006 model represents German engineering at its finest, designed for demanding production environments. Tool Management: The impressive 120-position tool magazine with HSK-A63 interface ensures extended unmanned operation and versatility for complex multi-operation jobs. The high-capacity magazine minimizes tool change interruptions during production runs. Measuring Systems: Equipped with an integrated laser tool measurement system for automatic tool verification and a workpiece measuring probe for precise zero-point setting and in-process quality control. Linear Technology: Features linear drive technology with sealing air protection for the linear measuring systems, ensuring consistent accuracy and long-term reliability even in demanding production environments. Application Focus: Ideal for aerospace components, large mold and die manufacturing, heavy machinery parts, and high-precision production requiring both capacity and accuracy.
